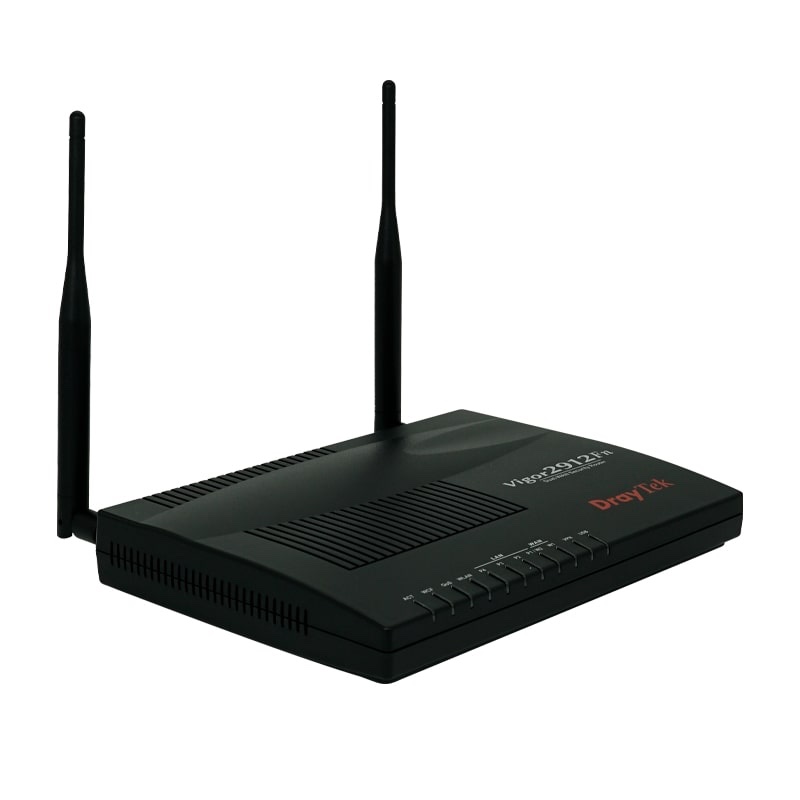

Thiết bị cân bằng tải Router Draytek Vigor2912Fn

Đặc điểm nổi bật của Draytek Vigor2912Fn

• 2 cổng WAN 10/100Mbps (WAN 1: cổng quang trực tiếp SFP, WAN 2 chuyển đổi từ LAN 1, RJ45).
• 4 cổng LAN 10/100Mbps, RJ45. 1 cổng USB kết nối 3G/4G.
• 2 Anten băng tần 2.4GHz, tốc độ 300Mbps với chuẩn 802.11n.
• Dual-WAN Load Balance/Failover. Hỗ trợ đường truyền đa dịch vụ: IPTV, Internet, VoIP,..
• 30.000 NAT Session, Throughput: 93Mbps (Static). Khả năng chịu tải lên đến 50 user. Hỗ trợ triển khai các dịch vụ cao cấp: Static IP, PPPOE, PPTP,L2TP, DHCP…
• VPN 16 kênh (GRE, IKEv2, 8 kênh VPN SSL…), VPN Trunking (Backup).VPN qua 3G/4G (Dial-out).
• Kiểm soát và quản lý băng thông giúp tối ưu hóa đường truyền internet.
• Firewall mạnh mẽ, linh hoạt, quản trị viên phân quyền truy cập Internet (IP/MAC Address…)
• Hỗ trợ Wifi Marketing từ nhà phát triển thứ 3(Meganet, Nextify, VNWIFI).
• Khả năng xử lý được nâng cao, cân bằng tải linh hoạt và mạnh mẽ hơn.
• User-Based quản lý người dùng theo tài khoản.
• Cho phép quản lý từ xa với cloud VigorACS 2.

Thiết bị cân bằng tải Router Draytek Vigor2912Fn

Interface
Fixed WAN Port	1x 10/100/1000Base-TX, RJ-45
WAN/LAN Switchable Port	1x 10/100/1000Base-TX, RJ-45 (WAN 2 or LAN Port 4)
Fixed LAN Port	3x 10/100/1000Base-TX, RJ-45
USB Port	1x USB 2.0 for 3G/4G/LTE USB modem, storage or printer
Button	1x Factory Reset Button 1x Wireless On/OFF/WPS Button (ac model)
Wi-Fi Antenna	2x External Dipole Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz (wireless model)
2.4G WLAN	802.11n 2×2 MIMO Up to 400Mbps Link Rate (ac model)
5G WLAN	802.11ac Wave 2 2×2 MU-MIMO Up to 867Mbps Link Rate (ac model)
Performance
NAT Throughput	530 Mbps
NAT Throughput w/ Hardware Acceleration	930 Mbps
IPsec VPN Performance	250 Mbps (AES 256 bits)
SSL VPN Performance	150 Mbps
Max. Number of NAT Sessions	30,000
Max. Concurrent VPN Tunnels	16
Max. Concurrent OpenVPN + SSL VPN	8
Internet Connection
IPv4	PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6	PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Multi-VLAN for Triple Play
Wireless WAN	1 (ac model)
WAN Load Balancing
WAN Failover
WAN Active on Demand	Link Failure, Traffic Threshold
Connection Detection	ARP, Strict ARP, Ping
WAN Data Budget
Dynamic DNS
DrayDDNS
LAN Management
VLAN	802.1q Tag-based, Port-based
Max. Number of VLAN	8
Number of LAN Subnet	4
DHCP Server	Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
Port Mirroring
Local DNS Server
Conditional DNS Forwarding
Hotspot Web Portal
Hotspot Authentication	Click-Through, Social Login, SMS PIN, RADIUS, External Portal Server
Networking
Routing	IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP v1/v2
Policy-based Routing	Protocol, IP Address, Port, Domain
DNS Security (DNSSEC)
IGMP	IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave
SMB File Sharing	(Requires external storage)
VPN
LAN-to-LAN
Teleworker-to-LAN
Protocols	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN
User Authentication	Local, RADIUS, LDAP, mOTP
IKE Authentication	Pre-Shared Key, X.509
IPsec Authentication	SHA-1, SHA-256, MD5
Encryption	MPPE, AES, DES, 3DES
VPN Trunk (Redundancy)	Load Balancing, Failover
Single-Armed VPN
NAT-Traversal (NAT-T)
DrayTek VPN Matcher
Firewall & Content Filtering
NAT	Port Redirection, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway)	SIP, RTSP, FTP, H.323
VPN Pass-Through	PPTP, L2TP, IPsec
IP-based Firewall Policy
Content Filtering	Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Spoofing Defense
Bandwidth Management
IP-based Bandwidth Limit
IP-based Session Limit
QoS (Quality of Service)	TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
APP QoS
Wireless LAN (ac model)
Number of SSID	4 per band
Security Mode	WEP, WPA, WPA2, Mixed(WPA+WPA2), WPA3
Authentication	Pre-Shared Key, 802.1X
WPS	PIN, PBC
WDS	Repeater (5GHz only)
Access Control	Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
AirTime Fairness
Band Steering
MU-MIMO	(5GHz Only) (dual-band model)
WMM
Management
Local Service	HTTP, HTTPS, Telnet, SSH v2, TR-069
Config File Export & Import
Config File Compatibility	Vigor2912
Firmware Upgrade	TFTP, HTTP, TR-069
2-Level Administration Privilege
Access Control	Access List, Brute Force Protection
Notification Alert	SMS, E-mail
SNMP	v2, v2c, v3
Syslog
Managed by VigorACS
Physical
Power Supply	DC 12V @ 1A
Max. Power Consumption	11.3 watts (ac model)
Dimension	220mm x 160mm x 36mm
Weight	400g (ac model)
Operating Temperature	0 to 45°C
Storage Temperature	-25 to 70°C
Operating Humidity (non-condensing)	10 to 90%
Certificate
